Firmware update for the eC-reflow-mate using the eC-reflow-pilot

The eC-reflow-mate V4 latest firmware can be downloaded from our website.

  1. Switch on the device
  2. Connect the device to the computer via USB cable

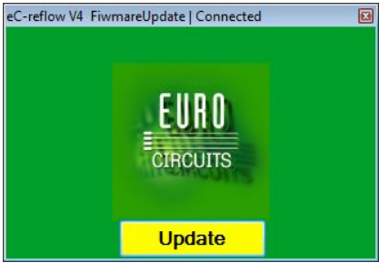

  3. Start the eC_reflow_V4_FU.exe
  4. After the program started, push the “Update” button
  5. Wait for “Loading OK!” message
  6. Switch off then switch on the device
  7. Sometimes the device needs an EEPROM update. It indicates the “EEPROM update” message. This process may take several minutes. During this process do not switch off the device.
